Design Fabricate Install Cabin
Cairo Egypt Air Base
Apache Katamia Air Base
Construction Complete: July 2014
<
>
AJT has completed the design, fabrication, outfit, ship and installing cabs at these two air bases in Cairo. Our analysis modified the specifications to provide better suited cabs to include glazing, cable ducts, materials, mullions and finishes, as well as raised computer flooring. The ultimate client is the US Army Corps of Engineers and AJT was contracted with construction joint venture firms Morganti Inc and All Am Construction.

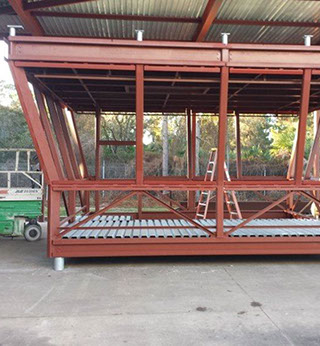

The cab was fabricated and split into 2 pieces to allow transport on US highways and loaded onto a cargo vessel. The cab was hoisted onto the tower shaft and fabricated at elevation.
Features:

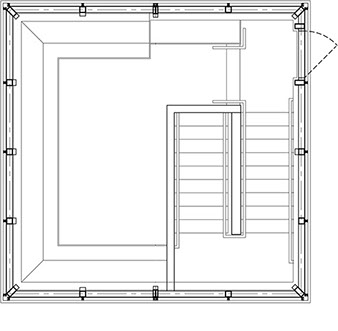

- 4 Sided Cab: Gross 420 SQ Footage
- Cab Will Accommodate Up to 3 Positions
- Full Height Catwalk Door
- 9'-0" Ceiling Height
- Pre-Finished Metal Siding with Concealed Fasteners
- Built in Concealed Cable Raceways Between Roof and Cab
- Pre-Finished Metal Siding with Concealed Fasteners

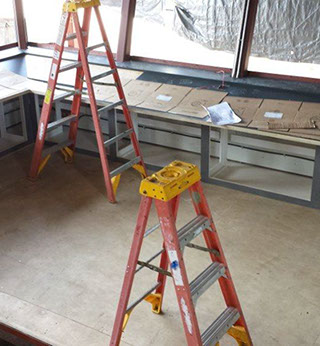

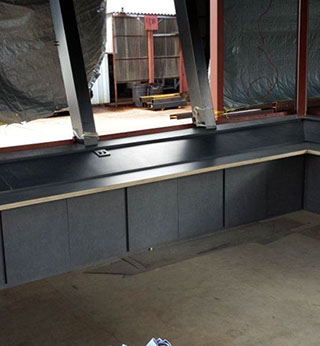

- Built in Custom Consoles With the Following Features
- Plastic Laminate Finish Over Finish Grade Plywood
- Custom Turret Design With Built-In Lighting Dimmer Controls
- Pencil Drawers (2) Each Position
- Head Set Storage
- Book Shelves
- Jack Box Cutouts (2 Per Position)
- Wall Mounted Cable Trays for Improved Wire Management
Behind Consoles
- Easy Access to Raceways to Roof and Equipment Roof
- 1/4" Plexiglass Inlay for Protection of Charts
- 2 File Drawers
- Grommets
- AV Cabinet Exhaust (EA Position)
